Industrial Stainless Steel Automatic Chemical Powder Mixing Machine V Shape Ribbon Mixer Protein Blending Tank Cosmetic Powder Blender
This equipment has two cylinders of unequal length, the line into the asymmetric, when the mixer when
the material from the decomposition to the combination of decomposition, from the combination to the
material plane, there are different Lateral force, but also to promote the lateral exchange of materials,
each rotating a circle of about 25% of the lateral force of the material from one barrel to another barrel,
so that the material radial radial mixing, decomposition combination of each other, the material to achieve
a very uniform mixing effect .
Features:
1).No mechanical extrusion and strong wear and tear, can maintain the integrity of the material particles.
2).Inside and outside the barrel polishing, are designed to smooth transition with the butterfly valve outlet,
no dead ends, to avoid cross-contamination of materials.
3).The machine can also be installed according to user needs mixing device, material humidification system,
gas protection device.
V Shape Ribbon Mixer Protein Blending Tank Parameters
|
Model |
Barrel volume(L) |
Motor power(W) |
Adjustable speed(r/min) |
Dimension (L* W*H)mm |
Weight(KG) |
|
TP-01 |
3 |
15 |
0-36 |
350*250*480 |
9.5 |
|
TP-02 |
7 |
25 |
0-36 |
430*300*520 |
13 |
|
TP-03 |
10 |
25 |
0-36 |
440*300*580 |
17 |
|
TP-05 |
16 |
35 |
0-33 |
480*380*680 |
19 |
|
TP-06 |
19 |
40 |
0-33 |
350*250*480 |
20 |
|
TP-08 |
26 |
60 |
0-33 |
520*400*940 |
30 |
|
TP-10 |
35 |
90 |
0-33 |
600*420*860 |
33 |
|
TP-15 |
45 |
120 |
0-33 |
600*600*1050 |
36 |
|
TP-20 |
62 |
180 |
0-33 |
580*650*1100 |
39 |
|
TP-25 |
76 |
250 |
0-33 |
630*530*1200 |
46 |
|
TP-30 |
100 |
370 |
0-20 |
910*860*1200 |
90 |
|
TP-50 |
160 |
550 |
0-20 |
860*1000*1450 |
118 |
|
TP-100 |
310 |
750 |
0-20 |
1220*1000*1700 |
158 |
|
TP-150 |
460 |
1100 |
0-17 |
1320*1100*1800 |
180 |
|
TP-200 |
610 |
1500 |
0-17 |
1650*1100*2150 |
260 |
|
TP-300 |
1000 |
4000 |
0-9 |
2800*1400*2500 |
330 |
|
TP-500 |
1500 |
5500 |
0-9 |
3200*1500*2800 |
460 |
|
TP-600 |
2000 |
7500 |
0-7 |
3400*1600*2800 |
580 |

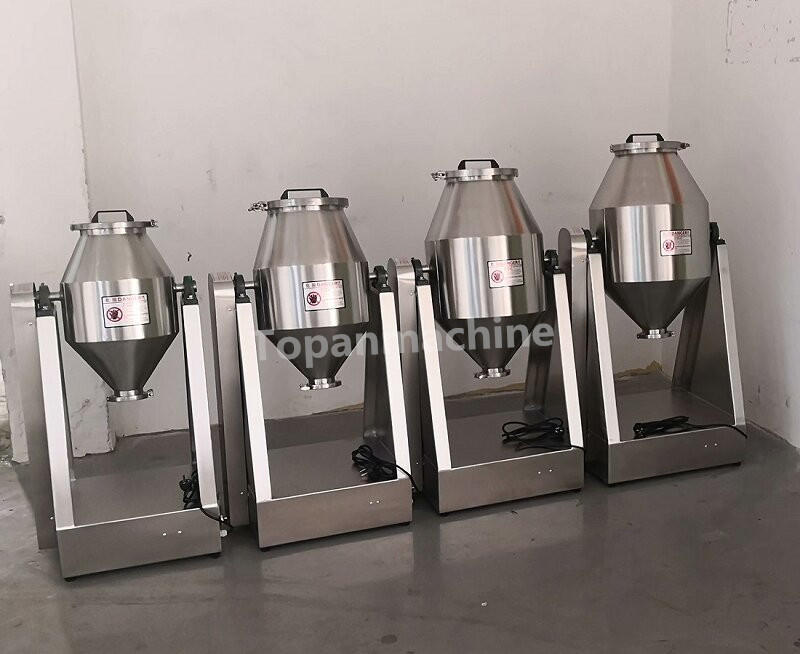

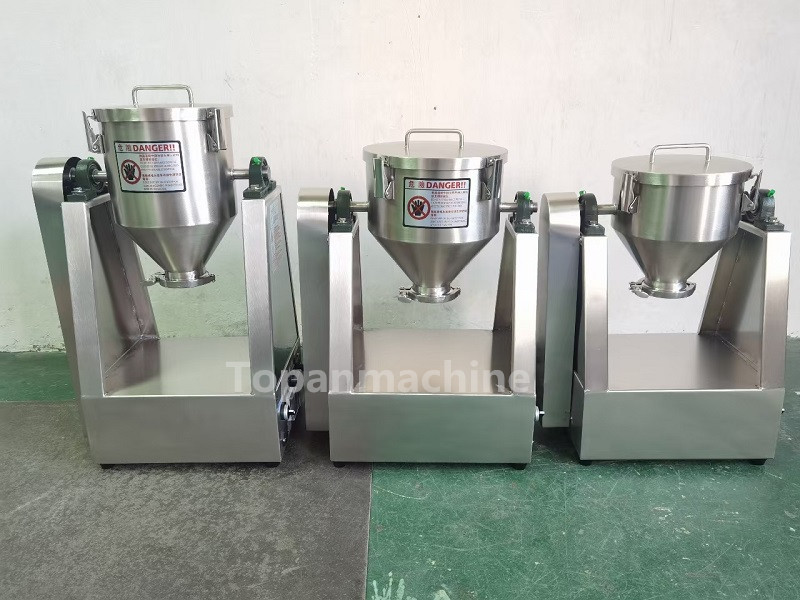

V Shape Ribbon Mixer Details

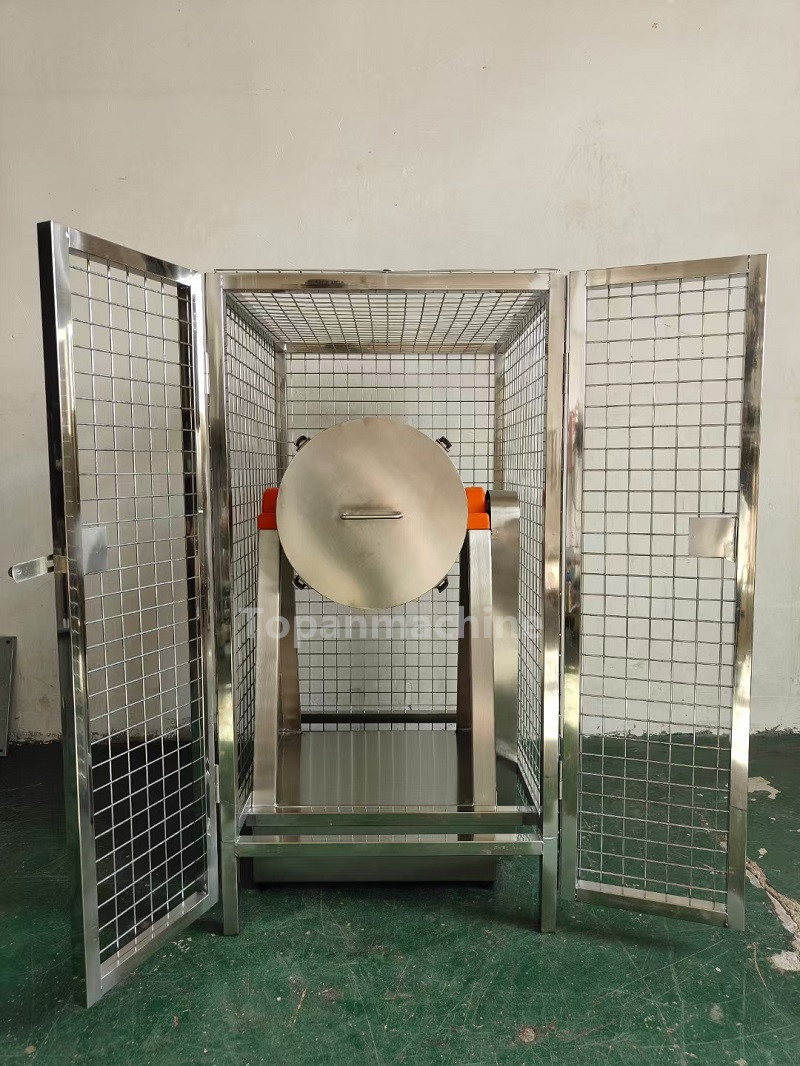

Powder Mixing Machine with Safe Guard
Topan has 1kg,2kgs,3kgs,5kgs,8kgs,10kgs,15kgs,20kgs,25kgs,50kgs,100kgs,150kgs,200kgs and more
Customized Powder Mixing Machine for satisfying different clients' requests.

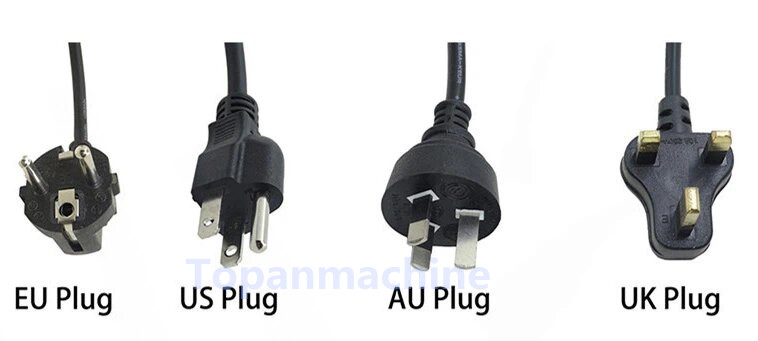

Plugs Customized according to different requests
Package for shipping
After Sale Service
1).Free assembling and installation,free operation and training.
2).12months quality warranty since the date of installation.The whole machine life's free technical guidance.
3).During warranty,all maintenance and damaged spare parts are free.After warranty,all charges with factory cost.
4).Support 7/24hours hot line service,as well as emails and videos communications.
5).Engineer is always available for customers’machine adjustment and maintenance if required.
6).Related Powder Package Machine can be added if you need.
7).We also supply the Perfume Mixer Perfume Mixing Machine and 3D Laboratory Blending Machine
